Fluke RSE600

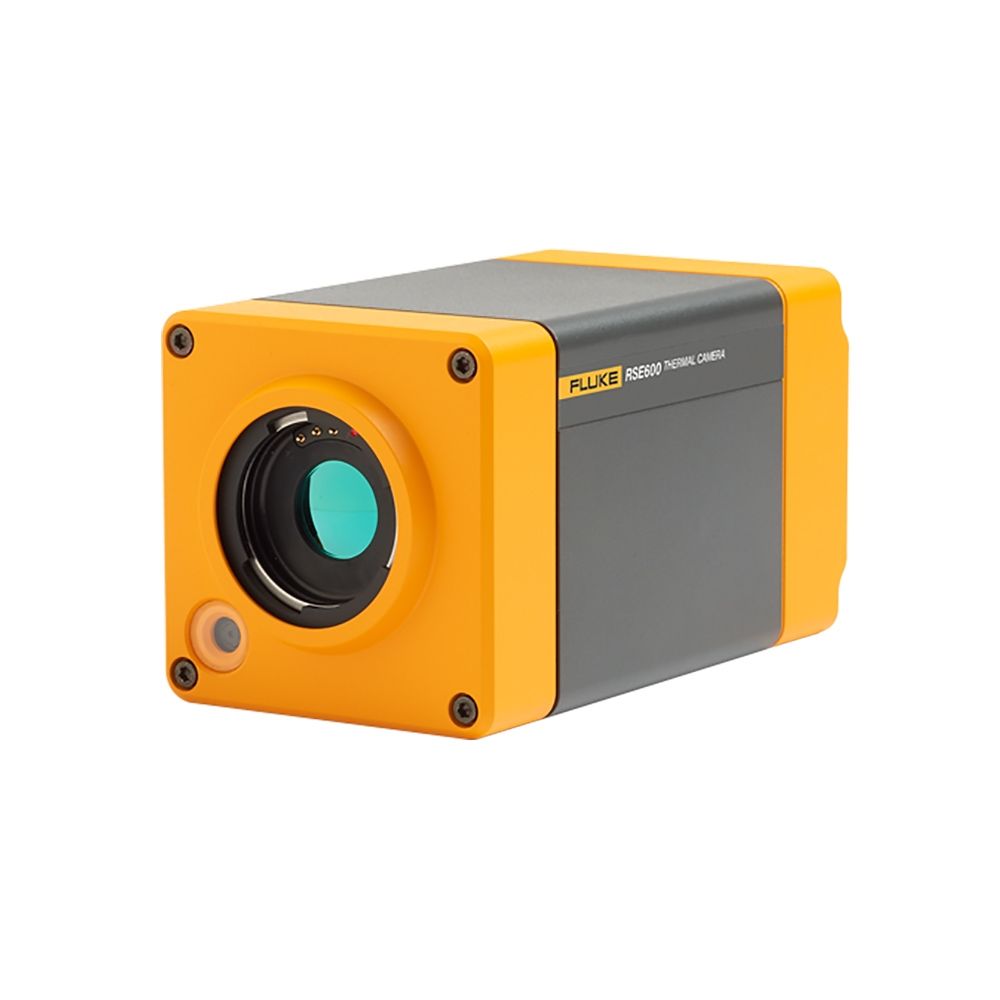

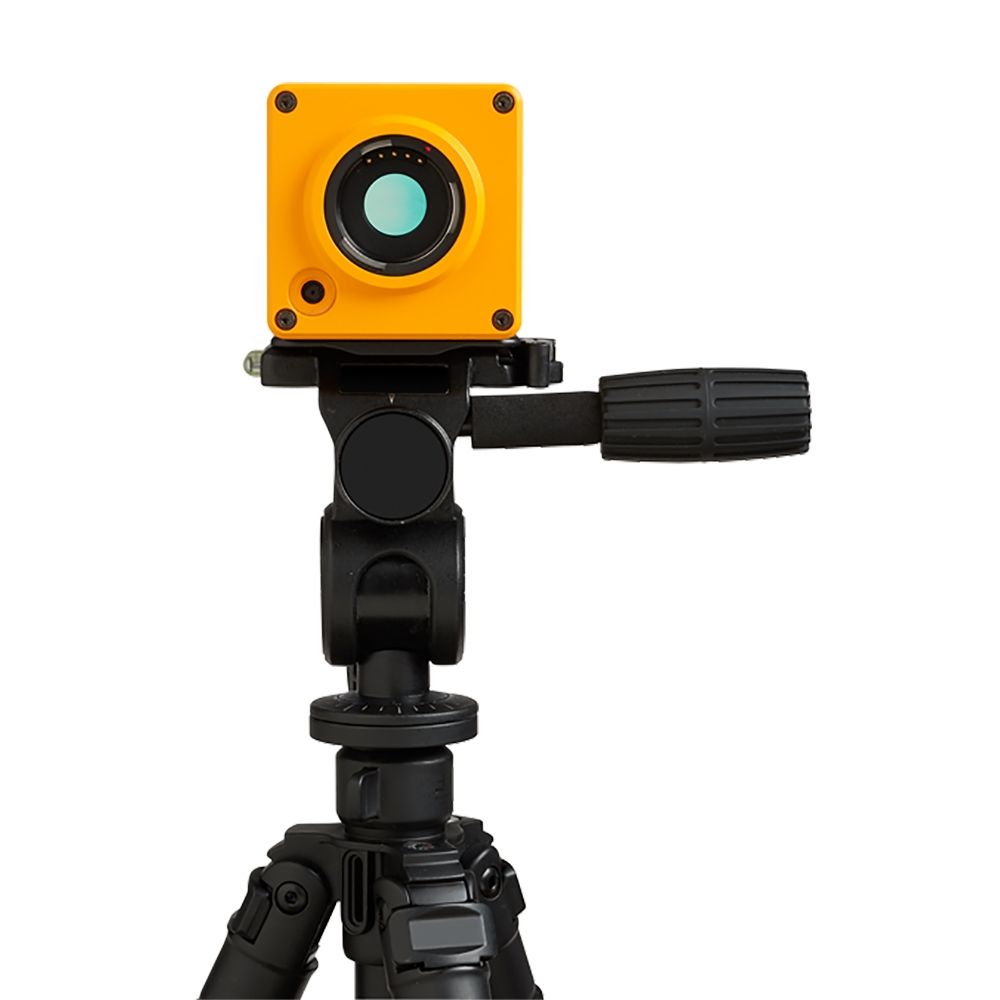

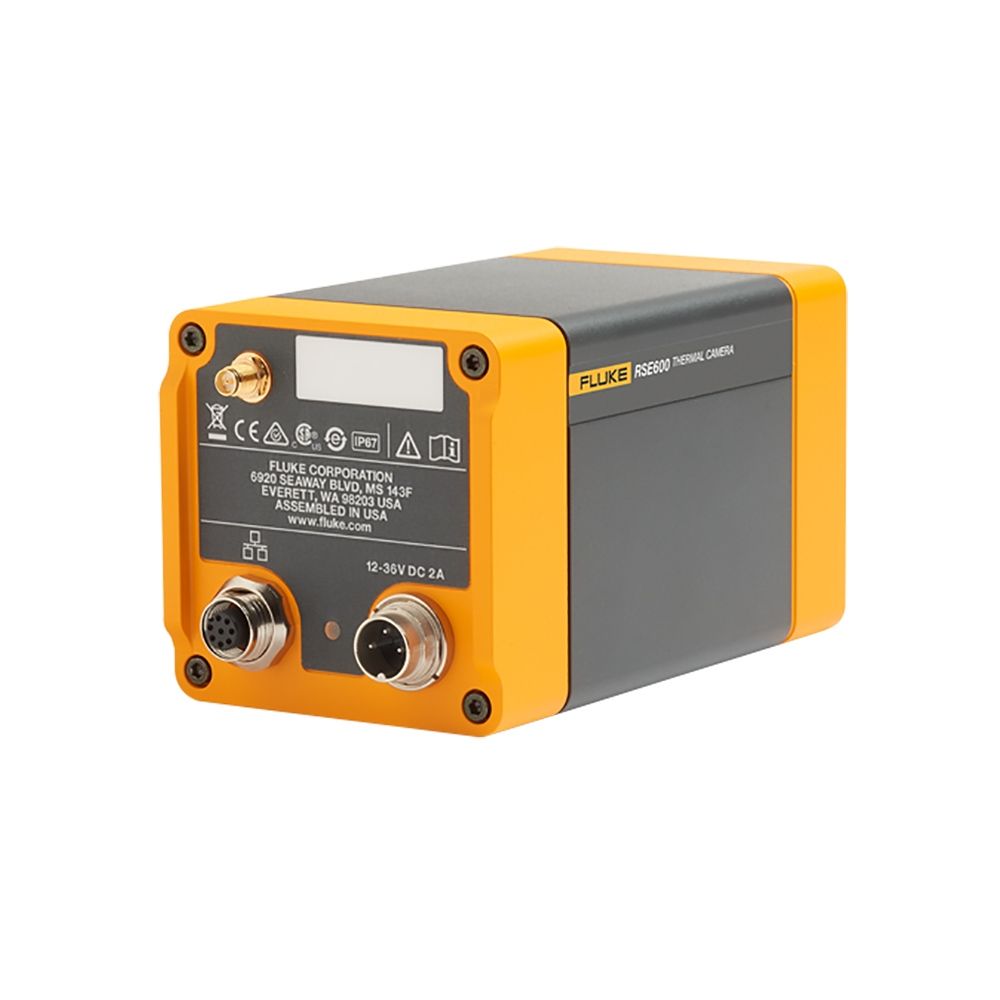

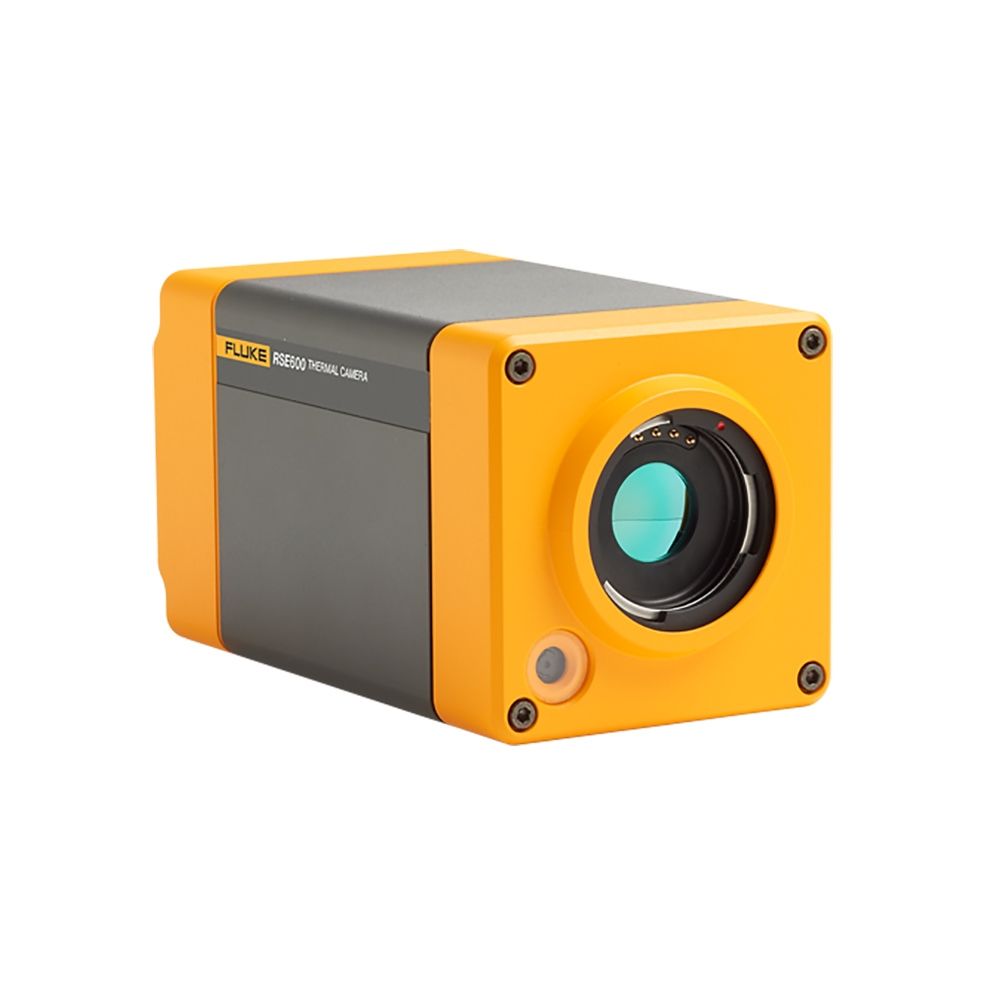

Fluke RSE600 Infrared Camera, 60 Hz, 640 x 480.

The Fluke RSE600 Infrared Camera is a high-performance thermal imaging solution designed for continuous monitoring and detailed analysis in research, development, and industrial applications. With a 640 x 480 resolution and advanced software compatibility, the RSE600 provides exceptional thermal sensitivity and accuracy for identifying hotspots, monitoring heat dissipation, and improving predictive maintenance strategies.

For more options, explore our full range of Thermal Imaging cameras or see a related model such as the Fluke RSE300 for comparison.

Key Features of the Fluke RSE600

• High-Resolution Imaging: 640 x 480 infrared resolution delivers sharp, detailed images for precise diagnostics.

• Software Integration: Compatible with MATLAB® and LabVIEW®, enabling seamless integration of infrared data, images, and video for advanced R&D analysis.

• Optional Smart Lenses: Choose from 2x and 4x telephoto, wide-angle, or macro lenses to adapt to different applications.

• SmartView® R&D Software: Optimize images, generate customizable reports, and export in multiple formats.

• MultiSharp™ Focus: Ensures fully focused images across the entire field of view, reducing misdiagnosis.

Applications

The Fluke RSE600 is ideal for:

• Research & Development: Electrical, mechanical, biological sciences, and thermal analysis of prototypes.

• Quality Control: Pre- and post-production testing to ensure product reliability.

• Hardware & Design Engineering: Monitoring heat dissipation and detecting hotspots in electronic components.

• Laboratories: Ideal for technicians and researchers working on advanced thermal diagnostics.

• Printed Circuit Board Testing (PCB): Identify microscopic heat variations during circuit testing.

Learn how thermal imaging supports facility reliability in our article: Thermal Imaging Cameras: Enhancing Predictive Maintenance in Industrial Facilities.

Fluke RSE600 Specifications

• Detector Resolution: 320 x 240 (76,800 pixels)

• IFOV with Standard Lens (Spatial Resolution): 1.85 mRad

• Field of View: 34° x 24°

• Minimum Focus Distance: 15 cm (6 in)

• Thermal Sensitivity (NETD): ≤0.030°C at 30°C target temperature (30 mK)

• Frame Rate: 60 Hz

• Digital Zoom: Up to 16x (via SmartView R&D software)

• Temperature Measurement Range: -10°C to 1200°C (14°F to 2192°F)

• Accuracy: ±2°C or ±2% (whichever is greater)

• Operating Temperature: -10°C to 50°C (14°F to 122°F)

• Storage Temperature: -20°C to 50°C (-4°F to 122°F)

• Dimensions: 8.3 x 8.3 x 16.5 cm (3.3 x 3.3 x 6.5 in)

• Weight: 1 kg (2.2 lbs)

What’s Included

• Fluke RSE600 Infrared Camera

• AC Power Supply

• Ethernet Cable

• Antenna

• SmartView® R&D Software Key

• Lens Cover

• Hard Carrying Case
